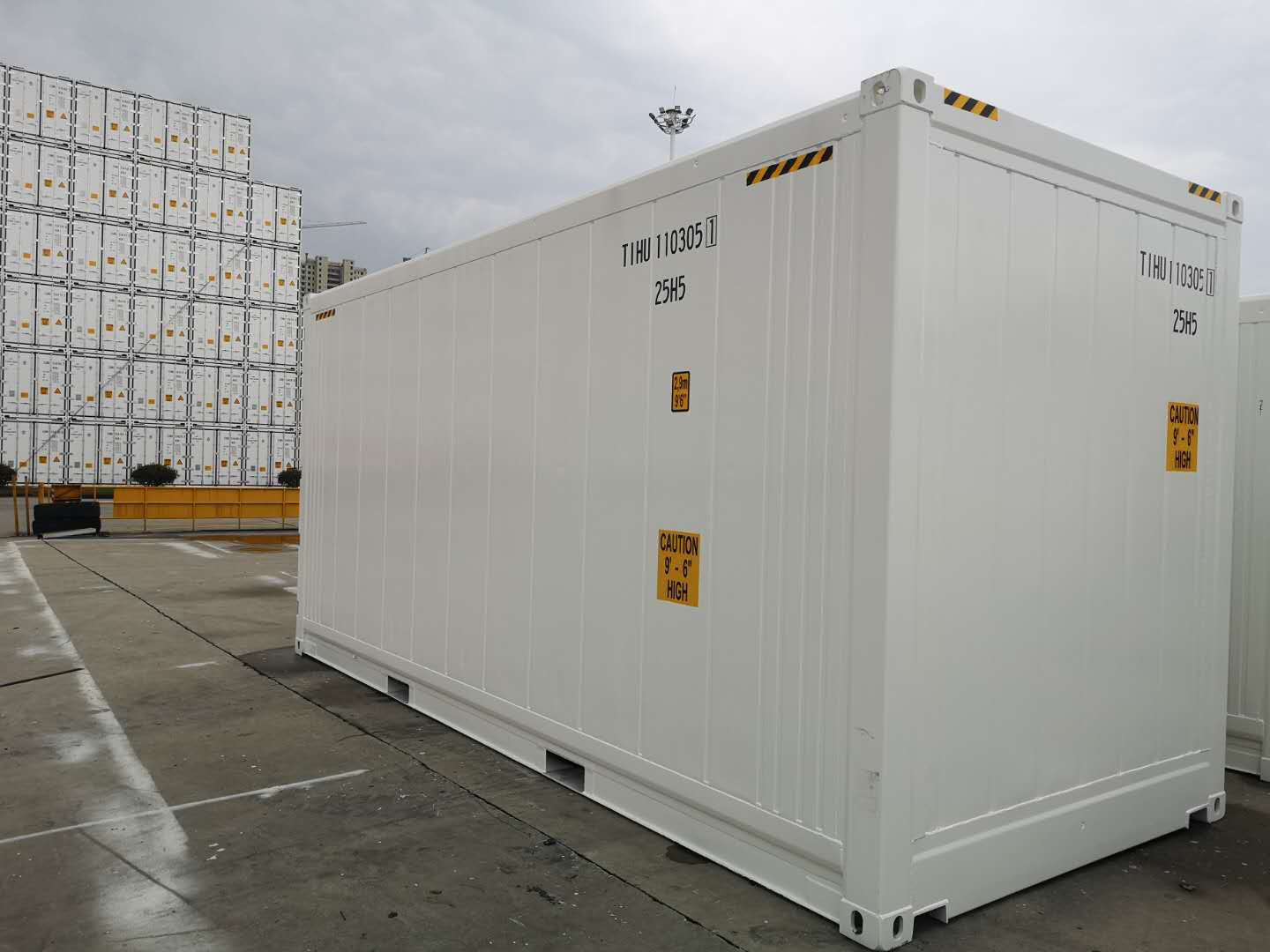

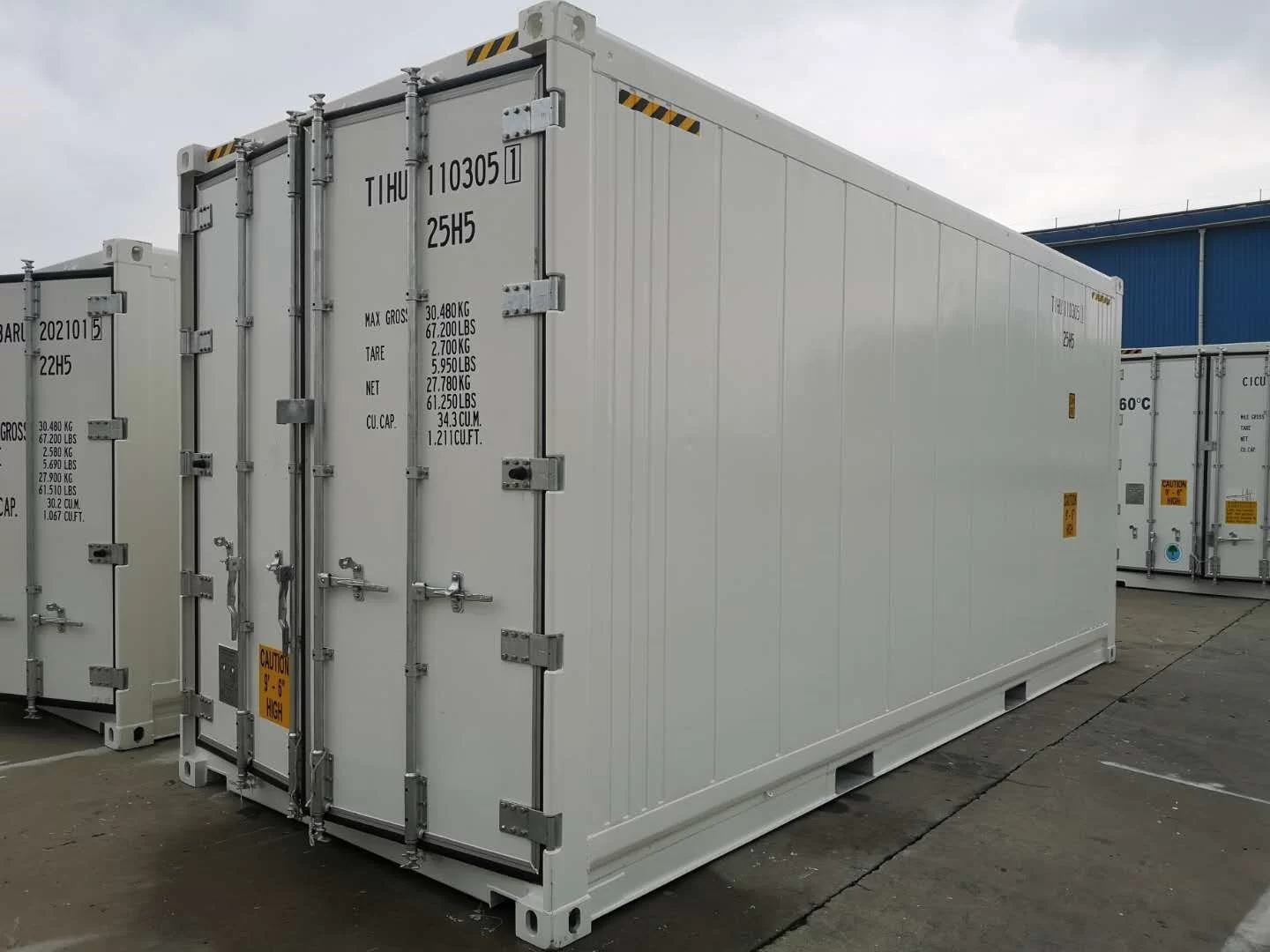

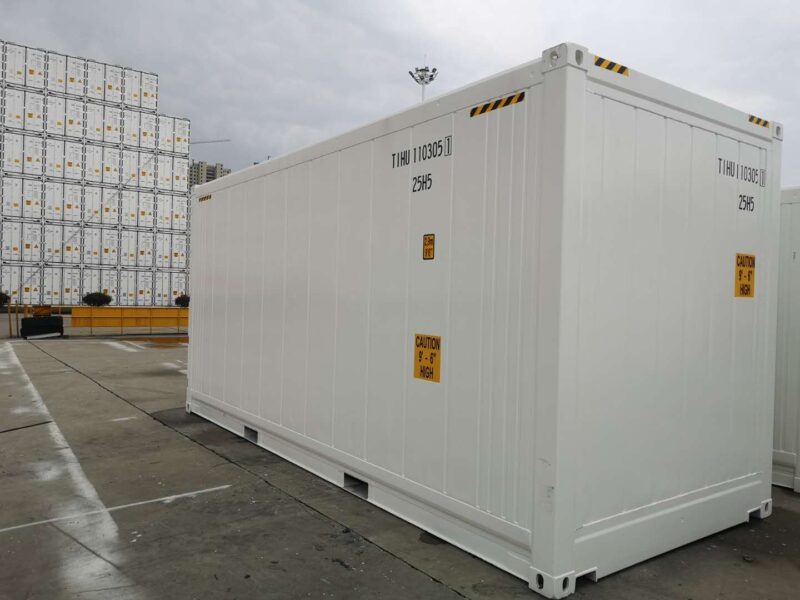

The 20′ High Cube Insulated Container from Big Mex Trailers is engineered for cargo that demands consistent internal conditions. Designed without refrigeration machinery, it offers full insulation to protect sensitive goods against temperature fluctuations, condensation, and environmental exposure.

Specifications:

• External Dimensions:
  L 6.0 m × W 2.4 m × H 2.9 m (20′ × 8′ × 9’6”)
• Internal Volume:
  34.3 m³ (1,211 cu ft)
• Tare Weight:
  2,700 kg (5,950 lbs)
• Max Payload:
  27,780 kg (61,250 lbs)
• Max Cargo Weight:
  30,480 kg (67,200 lbs)

Design Highlights:

• Full insulated walls, floor, and ceiling to maintain stable interior conditions

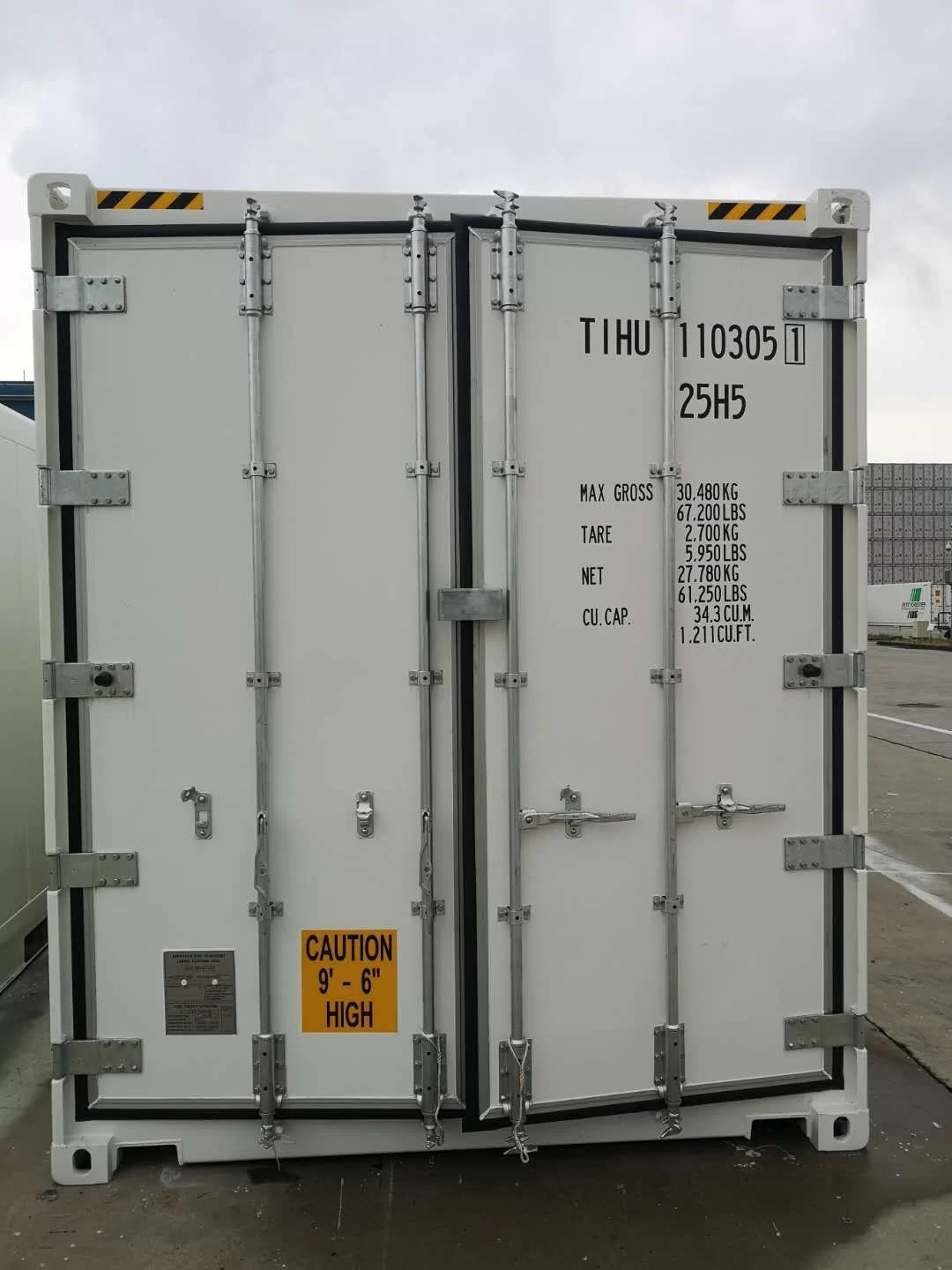

• Rubber-sealed double doors for moisture and dust protection
• Locking bars for enhanced cargo security
• Forklift pockets for ease of handling and relocation
• Lashing rings to secure goods during transport
• Fully ISO-compliant for seamless international and domestic shipping

Application Scope:
Ideal for the transport and storage of pharmaceuticals, vaccines, biomaterials, perishables, and sensitive goods that require protection from heat, humidity, and contamination. Its high cube profile offers expanded vertical space for bulkier, lightweight cargo that would not fit in standard containers.

Advantages:

• Shields cargo from external moisture and temperature shifts
• Cost-efficient alternative to powered refrigerated units
• Ready for customization — flooring upgrades, lockboxes, personnel doors, and exterior paint options available
• Available in 20ft and extended 45ft sizes
