Built for resilience and efficiency, the 40′ Shipping Container Chassis from Big Mex Trailers delivers exceptional performance for the secure transport of ISO-standard containers. Designed to meet the highest international transportation standards, this chassis ensures durability, stability, and seamless logistics operations over long hauls.

Construction Details:

• Main Beam:
  Hot-rolled H-beam W12@19lb/ft, ASTM A572 Grade 50 or equivalent
• Crossmember:
  3/16” thick × 3” wide × 9” deep channel with profiled bar-type diagonal brace
• Landing Gear:
  JOST A440 Magnum with solid axle shoes, blue RAL5010 coating
• Kingpin:
  JOST 2″ diameter, square-type

Axles, Wheels & Tires:

• Suspension:

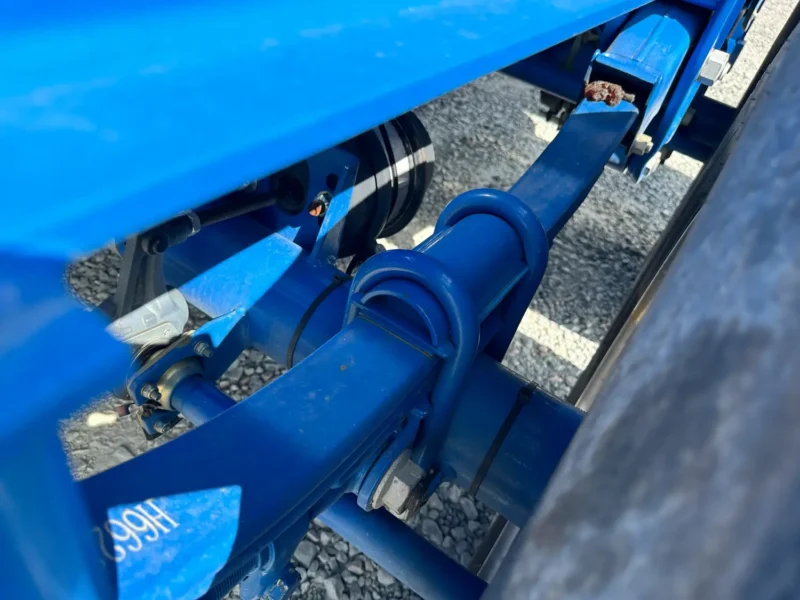

  AXN mechanical tandem suspension, overslung with high-arch 3-leaf spring
• Axles:
  AXN 5” round axles, 22,500 lbs capacity
• Wheels:
  JINGU 22.5 x 8.25, 10-stud hub-piloted with 5 hand holes, TR572 valve stem
• Tires:
  WESTLAKE 11R22.5-14PR, tubeless, SCPA branded

Brake and Electrical Systems:

• Brake System:
  SEALCO 110800 spring brake priority valve, WABCO 2S/1M ABS
• Electrical System:
  PHILLIPS mold-seal wiring harness with reserved PSI and GPS connectors
• Lighting:
  OPTRONICS LED lights for enhanced visibility and safety

Operational Highlights:

• Corrosion-resistant finish for South African road and port conditions
• Optimized weight-to-payload ratio for fuel efficiency
• Pre-fitted for PSI and GPS tracking upgrades
