The T11 7 Bar 24,000L Tank from Big Mex Trailers is engineered for the safe and efficient transport of non-hazardous liquid chemicals. Designed according to ISO standards, it provides maximum safety, structural integrity, and longevity for industrial-grade liquid transport needs.

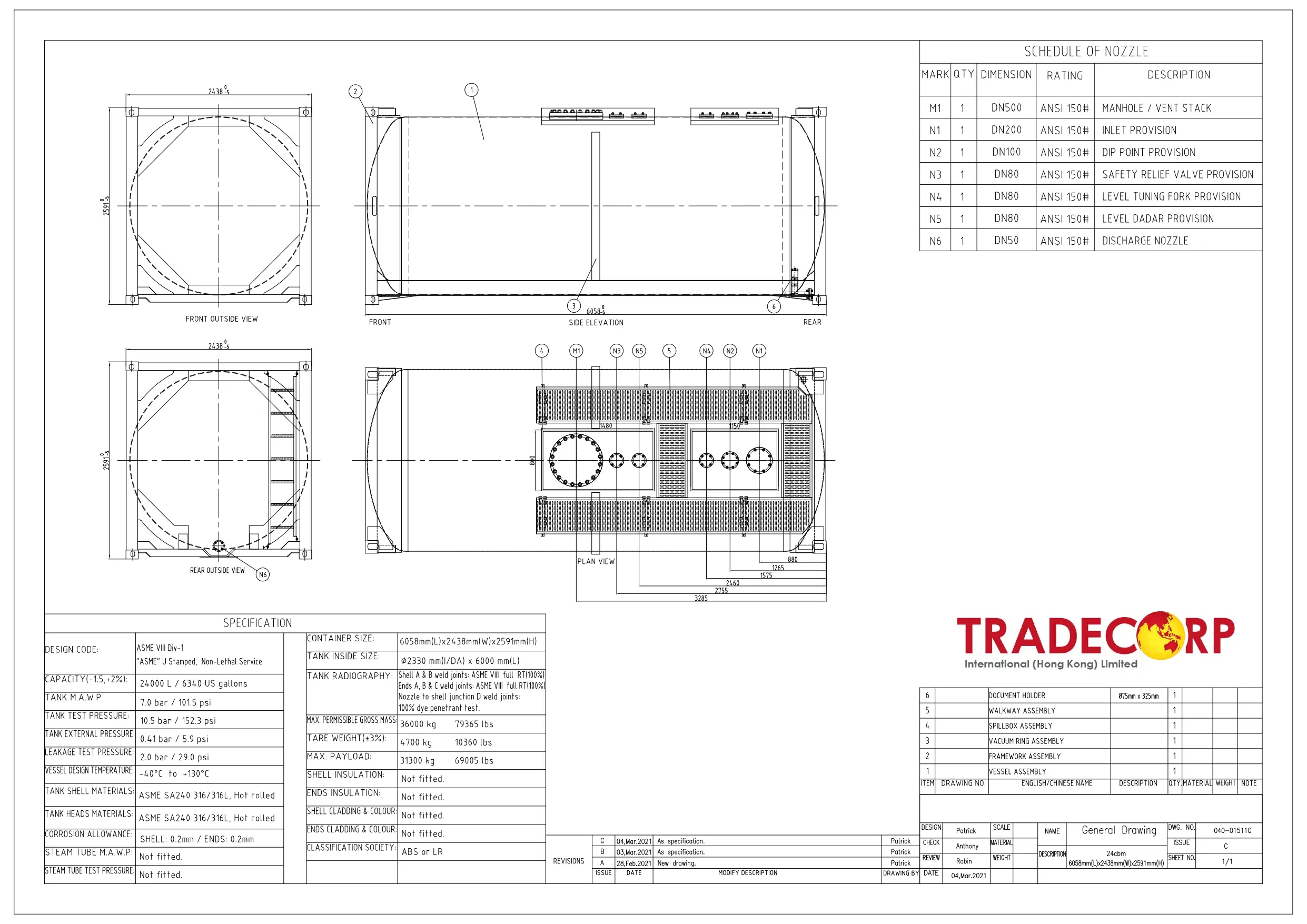

Specifications:

• External Dimensions:
  • 6.0m (L) x 2.4m (W) x 2.6m (H)
  • 20’ (L) x 8’ (W) x 8’5” (H)
• Nominal Capacity: 24,000L (6,340 US gallons)
• Tare Weight: 4,700 kg (10,360 lbs)
• Max Gross Mass: 36,000 kg (79,365 lbs)
• Design Temperature Range: -40°C to +130°C (-67°F to +266°F)
• Working Pressure: 7 bar (101.5 psi)

Key Features:

• Constructed from corrosion-resistant stainless steel
• Certified to ISO T11 standards
• 7 bar working pressure ensures optimal performance for a wide range of liquids
• Equipped with relief valves, emergency venting, and spill containment systems
• Weather-resistant frame capable of withstanding harsh environmental conditions
• Top hatch and release valve for efficient loading and discharge

Applications:
Ideal for transporting food-grade liquids, potable water, edible oils, certain fuels, and industrial chemicals where safety, durability, and compliance are non-negotiable.

Operational Advantage:
This tank offers turnkey efficiency—ready for both road and sea transport—minimizing downtime and regulatory risks while maximizing operational flexibility and cargo protection.
