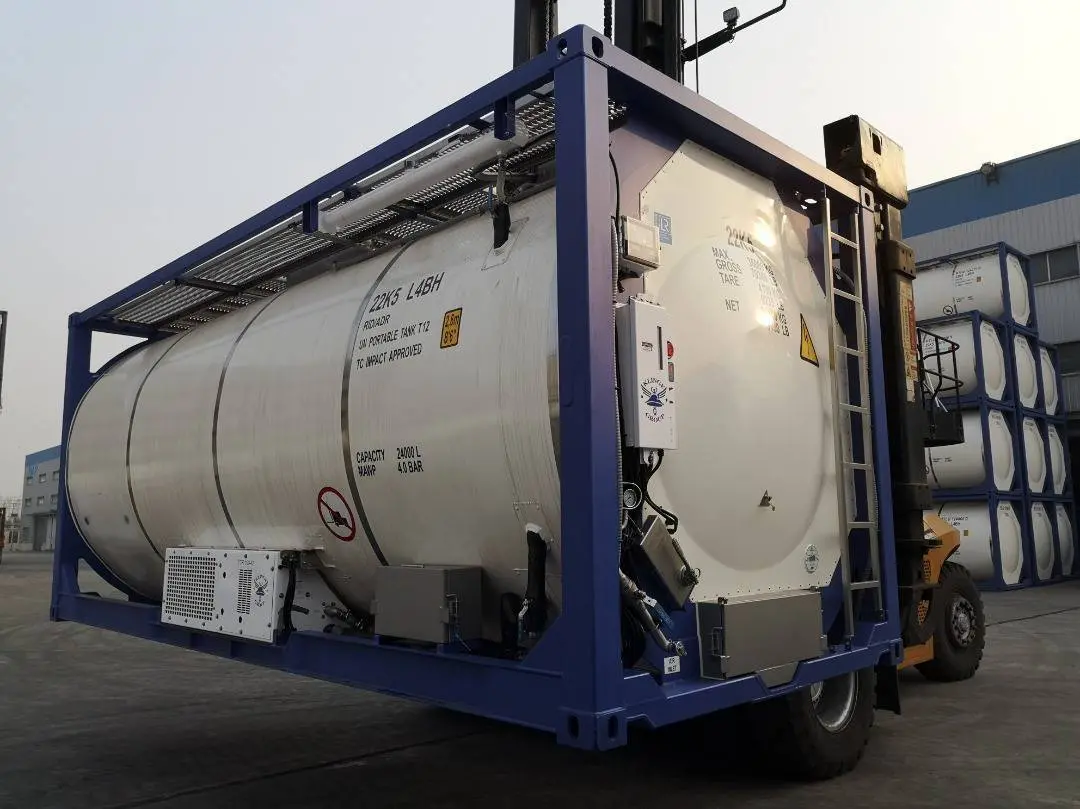

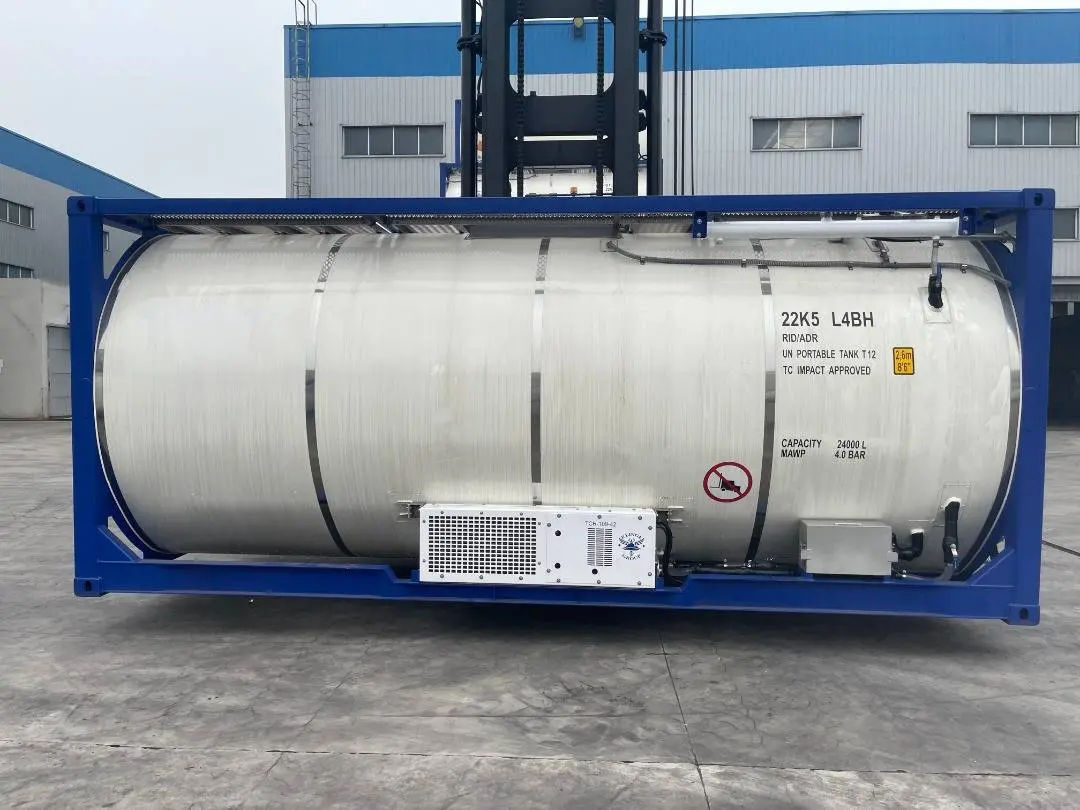

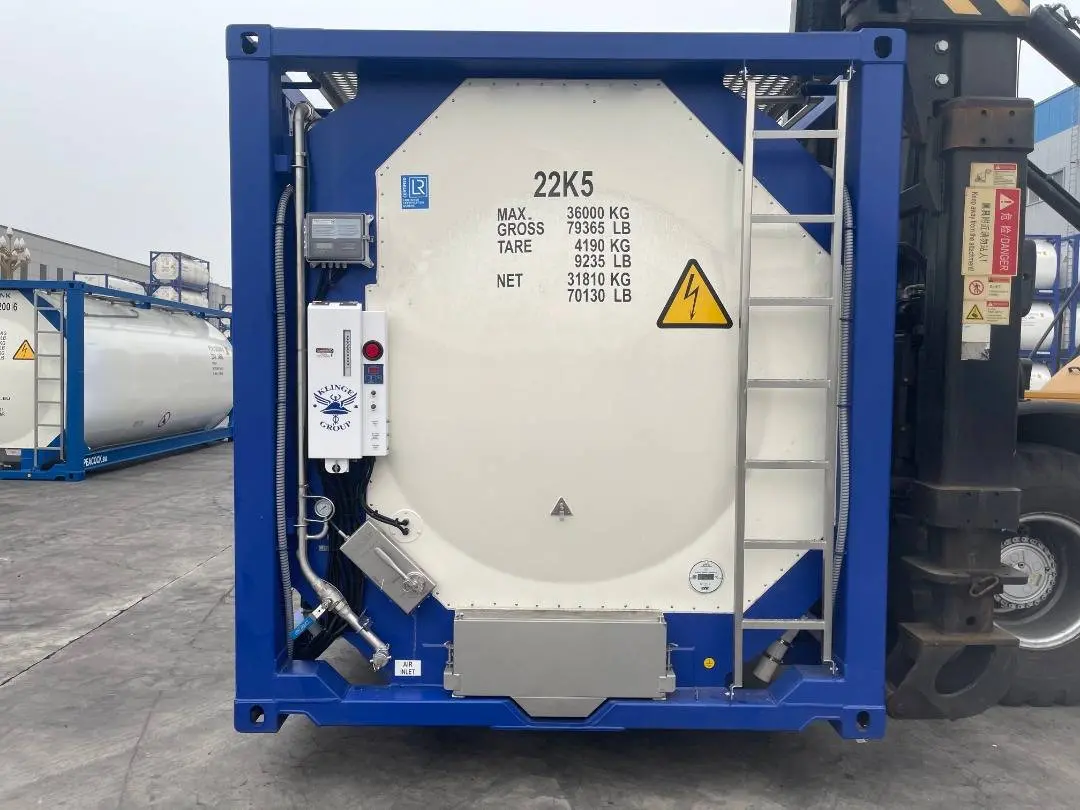

The T11 Reefer Tank Container from Big Mex Trailers delivers superior temperature-controlled liquid transport, engineered for South Africa’s rigorous food-grade logistics demands. Designed for operational precision, it ensures sensitive cargo remains safe, compliant, and at optimal temperature throughout transit.

Specifications:

• Capacity: 24,000 liters
• External Dimensions:
  • Length: 6.06m (20ft)
  • Width: 2.44m (8ft)
  • Height: 2.59m (8’6”)
• Tare Weight: 3,970 kg
• Max Gross Weight: 36,000 kg
• Max Payload: 32,030 kg
• Operating Voltage: 380V 50Hz / 460V 60Hz (3-Phase)

Key Features:

• High-efficiency Reefer System for precision temperature control
• Rockwool Insulation for superior thermal protection
• Top and Bottom Longitudinal Members ensuring structural integrity
• Bottom Cabinet and 2 Spillage Boxes for enhanced operational safety
• Bottom Discharge for efficient liquid evacuation
• Air Inlet for controlled ventilation
• Safety Relief Valve for overpressure protection
• Miss Stacking Protection to secure cargo integrity

Ideal For:
Transportation of food-grade liquids such as wine, milk, juices, alcohol, and water under controlled temperature conditions, adhering to stringent quality standards.
